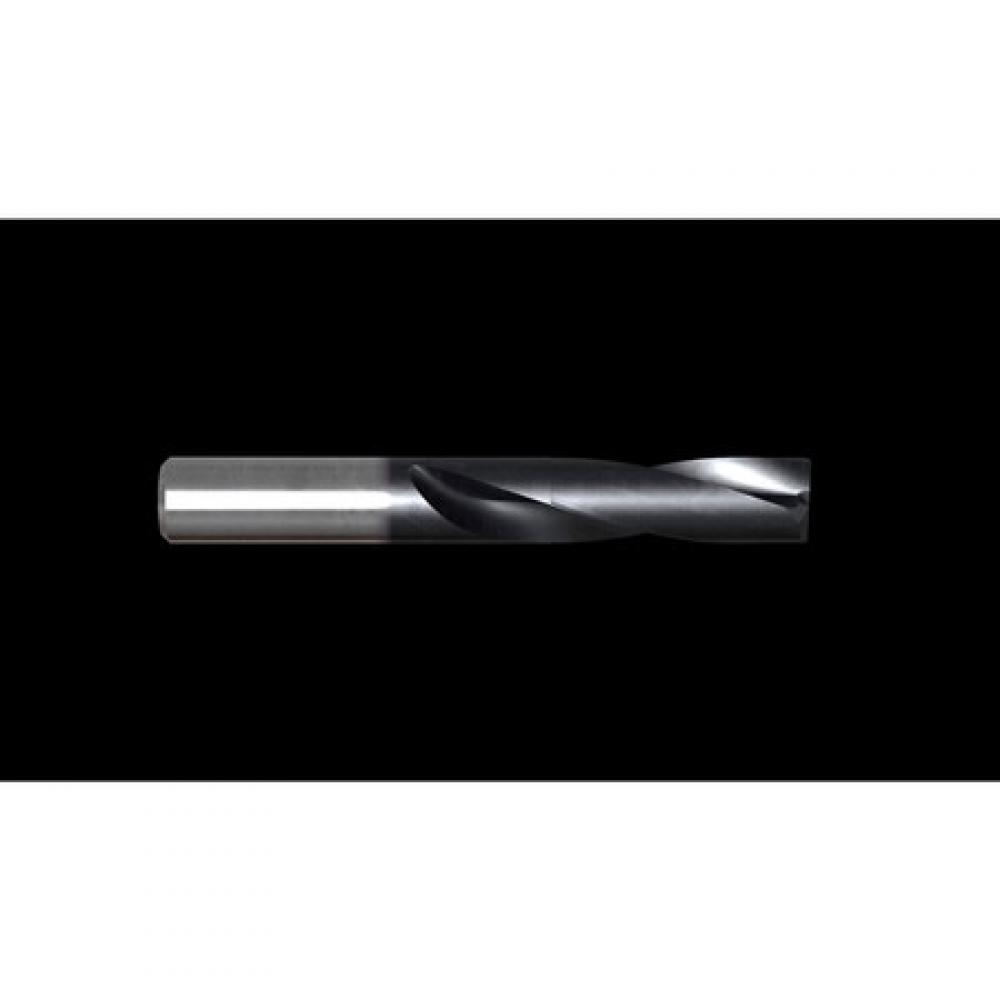

7/32 x 6 x 24 x 60 DREAM DRILL FLAT BOTTOM W/O COOLANT HOLE (2XD)

YG-1

No reviews yet Write a Review
SKU:
YG1-DPP447014F
$71.29

Specifications

Unit of Measure
Metric
Diameter
5.56 mm
Shank Size
6 mm
Overall Length
60 mm
Cutting Direction
Right
Material
Carbide
Shank Diameter (Decimal)
0.24
Shank Diameter (Fractional)
13/55
Overall Length (Decimal)
2.37
Overall Length (Fractional)
2-25/69
Type
Flat Bottom
Point Angle
180 degrees
Flute Length (Decimal)
0.95
Flute Length (Fractional)
17/18
Flute Length
24 mm
Length Of Cut
2
Diameter (Decimal)
0.22
Through Coolant
No
Workpiece Material
"Steel, Cast Iron"
Diameter (Fractional)
7/32
Hole Tolerance
H7
Shank Tolerance
H6
$71.29
Add to Your List
Request a Quote

Buying in volume or need custom terms? Request a Quote.
