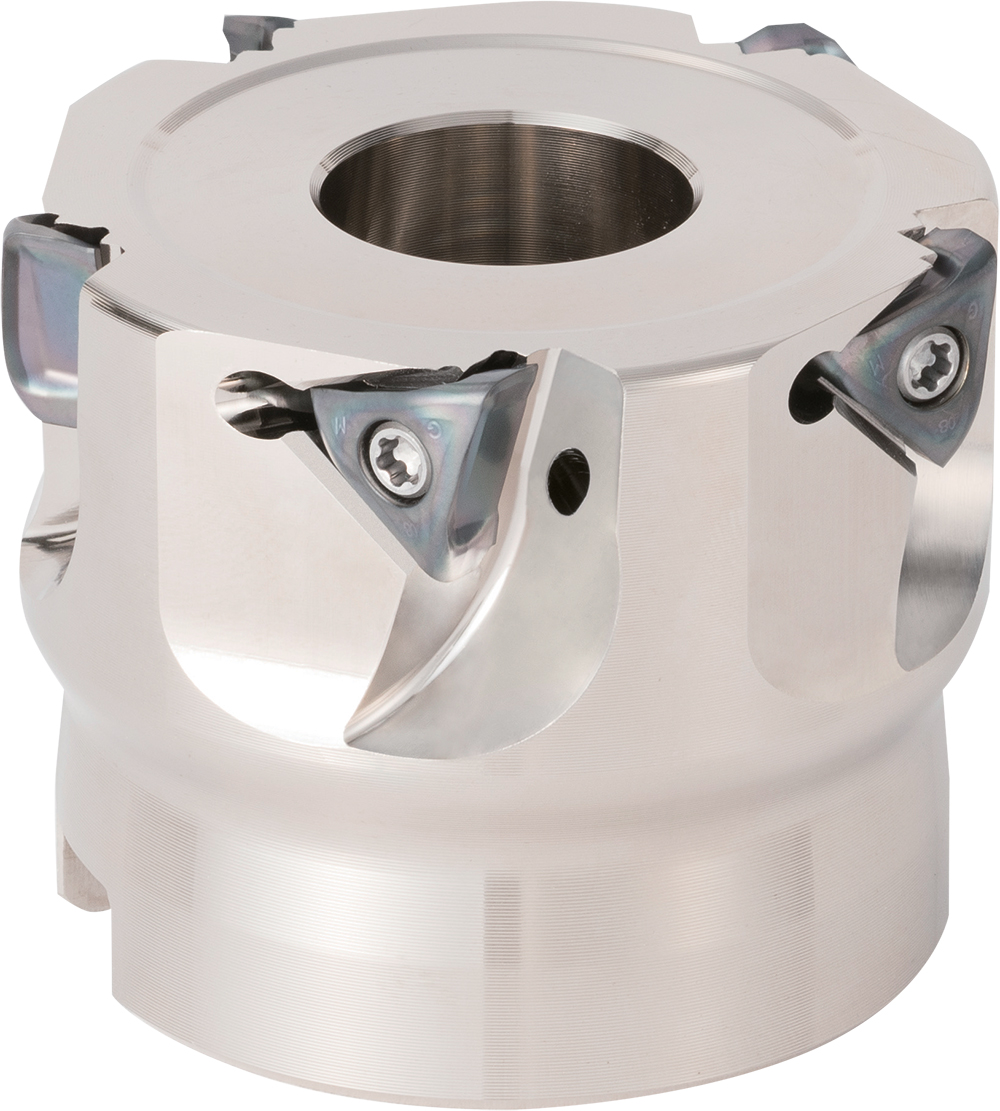

Kyocera MEV 2500R066T Inch Bore Diameter, 90 Degree Face Mill

Kyocera Precision Tools

No reviews yet Write a Review
SKU:
KYP-THN08565
$875.00
Kyocera MEV 2500R066T Inch Bore Diameter, Standard Pitch, 6 Flute, 90 Degree Face Mill with a 2.5000" Cutting Diameter for Shouldering, Facing, Slotting, Ramping, Pocketing, Helical Milling, Plunging Applications

Specifications

Series
MEV
Unit of Measure
Imperial
Material
Steel
Cutting Diameter (Decimal)
2.50
Cutting Diameter (Metric)
63.50
Cutting Diameter
2.50 Inch
Number of Flutes
6
Application
Facing, Helical Milling, Plunging, Pocketing, Ramping, Shouldering, Slotting
Insert Holding Method
Screw
Coolant Through
Yes
Old Material Number
8609431
ANSI Part Number
MEV2500R066T
ISO Part Number
MEV2500R-06-6T
Material Group / Grade
GR99
Tool Style
MEV
Cutting Diameter Minimum (Decimal)
2.50
Number of Inserts
6
Hand of Holder
Right
Max. Depth Of Cut
0.24 Inch
Maximum Depth of Cut (Metric)
6
Cutting Diameter Minimum (Metric)
63.50
Cutting Maximum (Metric)
63.50
Connection Bore Diameter (Decimal)
0.75
Connection Bore Diameter (Metric)
19.05
Contact Surface Diameter Machine Side (Decimal)
1.97
Contact Surface Diameter Machine Side (Metric)
50
Tool Entering Angle
90 degrees
Cutter Pitch
Standard Pitch
PDF 1
https://s3-us-west-2.amazonaws.com/catsy.739/MEV_High_Performance_Milling.pdf
